Product Description

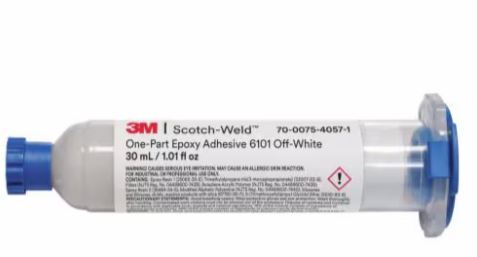

33M™ Scotch-Weld™ One-Part Epoxy Adhesive 6101 Off-White (AHS 1831) is a one-part epoxy exhibiting a low temperature cure or fast high temperature cure with long room temperature pot life. It is flexible and toughened resulting in high impact performance.
Product Features
- One-part with stability at room temperature
- Low temperature cure and fast cure options
- Excellent impact resistance
- Plastic Bonding
- Contains a UV indicator to enhance detection during manual or automated application
Technical Information Note
The following technical information and data should be considered representative or typical only and should not be used for specification purposes.

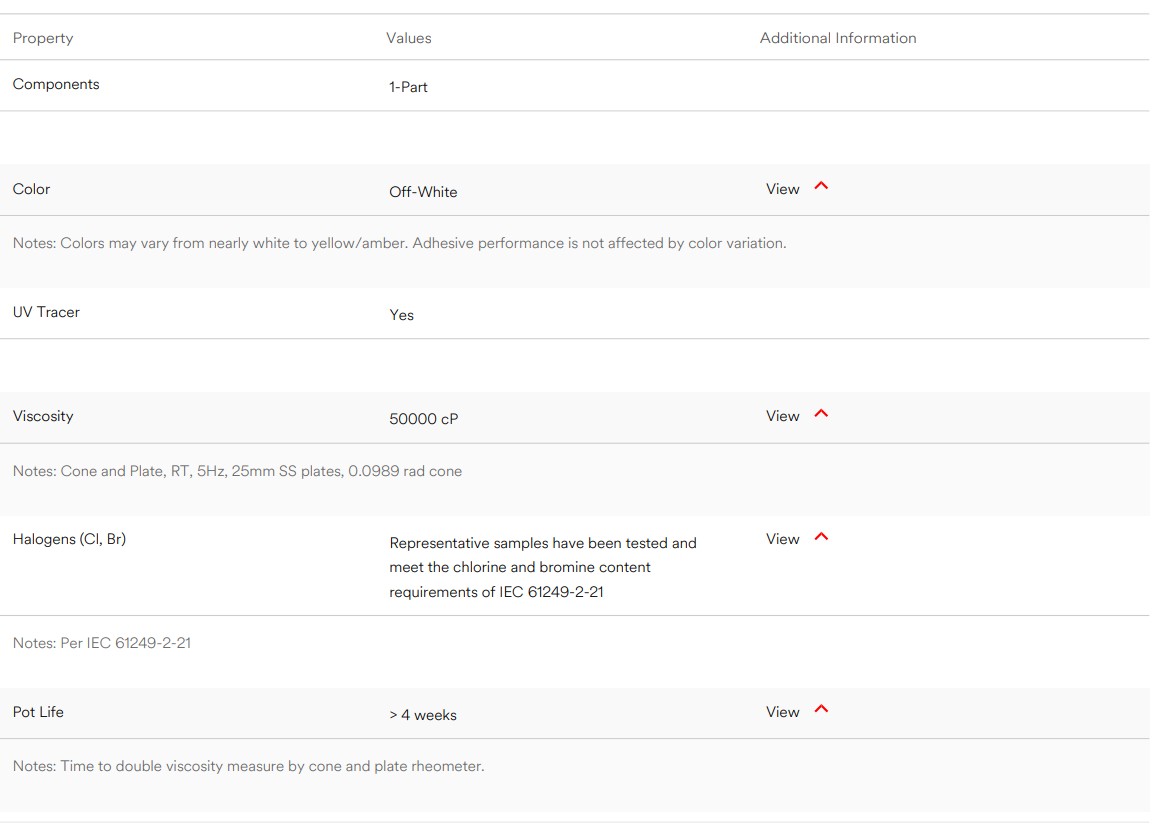

Typical Uncured Physical Properties
Typical Mixed Physical Properties

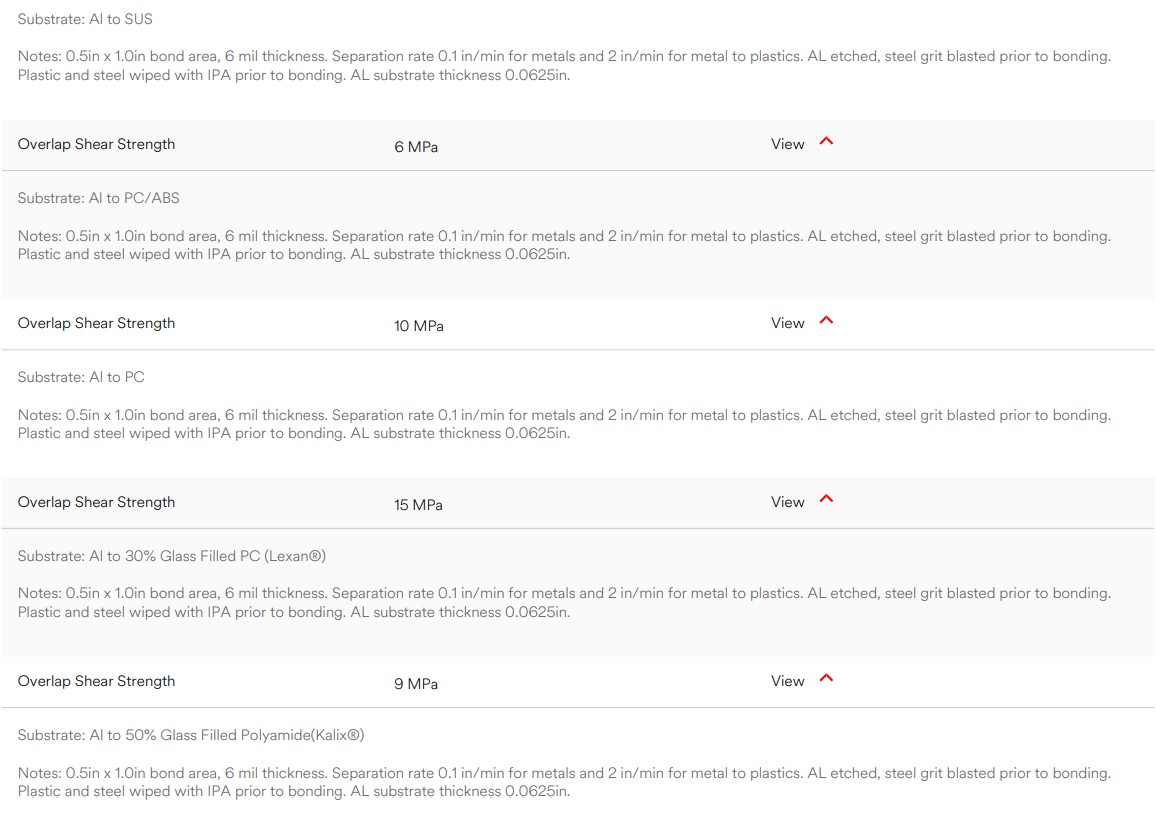

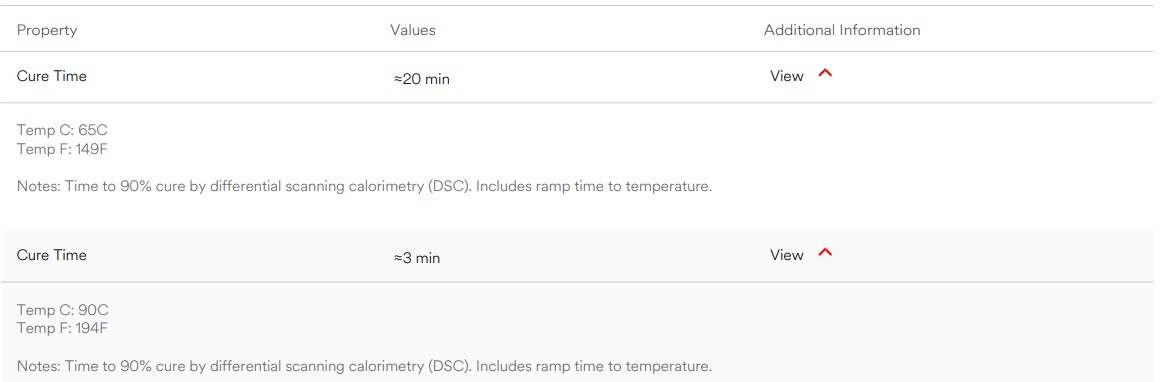

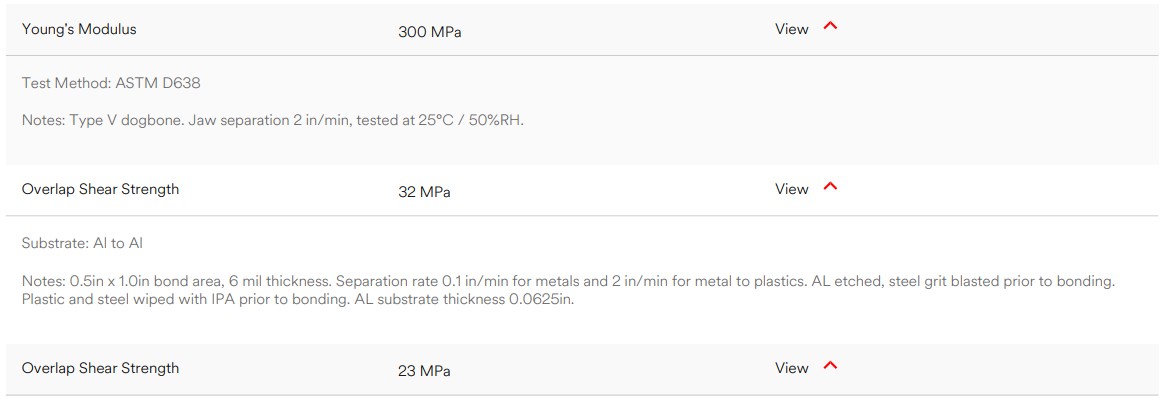

Typical Performance Characteristics
Available Sizes
30 mL syringe, 8 oz cartridge
Storage and Shelf Life
The shelf life of 3M™ One-Part Epoxy Adhesive 6101 Off-White is 18 months from the date of manufacture when stored in the original packaging materials and stored at -20°C (-4°F).
Certificate of Analysis (COA)
The 3M Certificate of Analysis (COA) for this product is established when the product is commercially available from 3M. The commercially available product will have a COA specification established. The COA contains the 3M specifications and test methods for the products performance limits that the product will be supplied against. The 3M product is supplied to 3M COA test specifications and the COA test methods. Contact your local 3M representative for this product’s COA.
This technical data sheet may contain preliminary data and may not match the COA specification limits and/or test methods that may be used for COA purposes.
Automotive Disclaimer
Automotive Applications: This product is an industrial product and has not been designed or tested for use in certain automotive applications, including, but not limited to, automotive electric powertrain battery or high voltage applications. This product does not fully adhere to typical automotive design or quality system requirements, such as IATF 16949 or VDA 6.3. This product may not be manufactured in an IATF certified facility and may not meet a Ppk of 1.33 for all properties. The product may not undergo an automotive production part approval process (PPAP). Customer is solely responsible for evaluating the product and determining whether it is appropriate and suitable for customer’s automotive application and for conducting incoming inspections before use of the product. Failure to do so may result in injury, death, and/or harm to property. No written or verbal statement, report, data or recommendation by 3M related to automotive use of the product shall have any force or effect unless in an agreement signed by the Technical Director of 3M’s Automotive Division. Customer assumes all responsibility and risk if customer chooses to use this product in an automotive electric powertrain battery or high voltage application, and 3M will not be liable for any loss or damage arising from or related to the 3M product or customer’s use of the product, whether direct, indirect, special, incidental, or consequential (including, but not limited to, lost profits or business opportunity or recall costs), regardless of the legal or equitable theory asserted, including, but not limited to, warranty, contract, negligence, or strict liability. In no event shall 3M be liable for any damages in excess of the purchase price paid for the product.
NOTWITHSTANDING ANY OTHER STATEMENT TO THE CONTRARY, 3M MAKES NO REPRESENTATIONS, WARRANTIES OR CONDITIONS WHATSOEVER, EXPRESS OR IMPLIED, REGARDING THE PRODUCT IF USED IN AN AUTOMOTIVE ELECTRIC POWERTRAIN BATTERY OR HIGH VOLTAGE APPLICATION, INCLUDING, BUT NOT LIMITED TO, ANY WARRANTY ON PERFORMANCE, LONGEVITY, SUITABILITY, COMPATIBILITY, OR INTEROPERABILITY, OR ANY IMPLIED WARRANTY OR CONDITION OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE, OR ARISING OUT OF A COURSE OF DEALING, CUSTOM, OR USAGE OF TRADE.
Warranty, Limited Remedy, and Disclaimer
TSafety Data Sheet: Consult Safety Data Sheet before use.
Regulatory: For regulatory information about this product, contact your 3M representative.
Experimental Product: This 3M product is an experimental or developmental product that has not been introduced or commercialized for general sale, and its formulation, performance characteristics and other properties, specifications (if any), availability, and pricing are not guaranteed and are subject to change or withdrawal without notice.
Bottom Matter
3M
Electronics Materials Solutions Division
3M Center, Building 224-3N-11
1-800-251-8634 phone
651-778-4244 fax
www.3M.com/electronics
Trademarks
3M is a trademark of 3M Company
Handling/Application Information
Application Examples
- • Mobile device bonding
- Wearable electronic device bonding
- Electronic Assembly
Application Techniques
- Dispensing
- Jetting
- Screen or stencil printing
Directions for Use
Thaw for one to two hours at room temperature before using. Do not heat syringe above 27°C when warming.
